LED Indicators

Power/Status LED

The Power/Status LED indicator on SmartNode can communicate several different operational states, as shown in the following table:

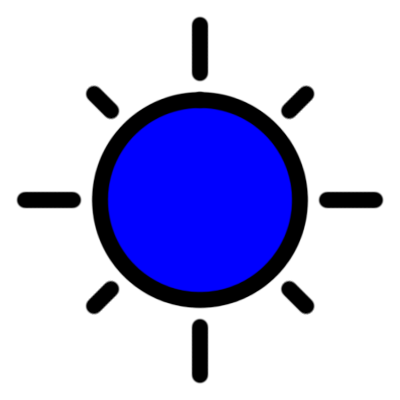

LED-Blue-Slow.png Starting Up (~2 seconds)

LED-Blue.png On (using DC Power)

LED-Green.png On (using PoE Power)

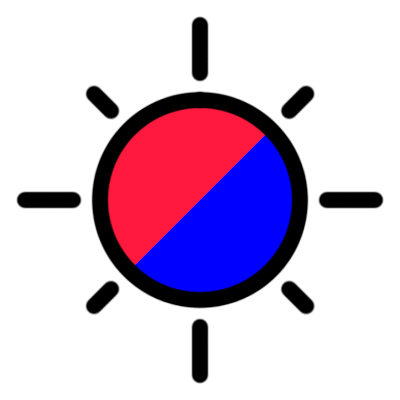

LED-Red-Blue-Slow.png Device Identify Mode

LED-Green-Blue-Fast.png Reset Button Held at Startup

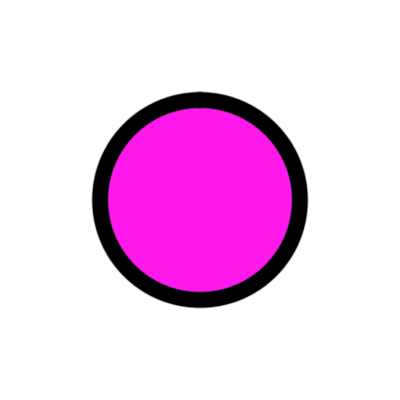

LED-Magenta.png Factory Reset Confirmed

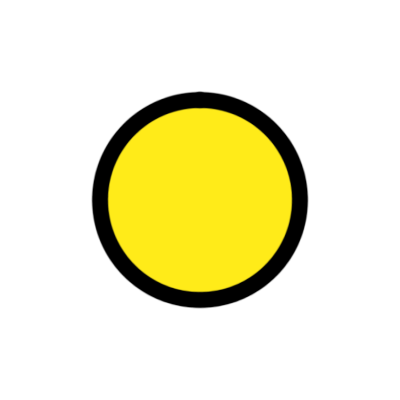

LED-Yellow.png Firmware Update in Progress

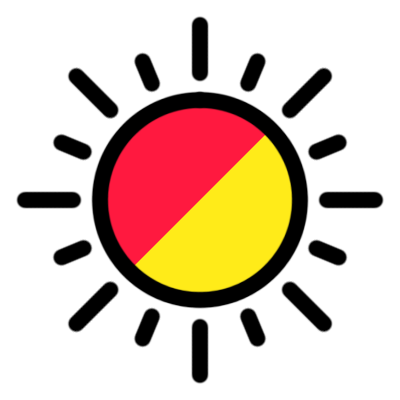

LED-Red-Yellow-Fast.png Internal Error

For information about the LED indicator on individual modules, please refer to the specific Smart Module data sheets.

Ethernet LEDs

The RJ45 Ethernet Jack has two LED indicators. Their meanings are shown in the following table:

LED-Yellow.png Link - Lights when an Ethernet Link is active

LED-Green.png Activity - Flashes when data is being sent/received by the Ethernet network
